- FS20力傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/16
Applications: Robotics end-effectors, Variable force control, Load and compression sensing, Pumps, Contact sensing, Weighing, Household appliances

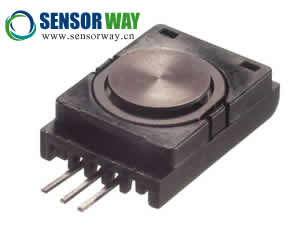

Description: The FS20 Series low cost compression force sensor creates new markets previously unrealizable due to cost and performance constraints. This series raises the bar in price and performance. Measurement Specialties’ proprietary Microfused™ technology, derived from demanding aerospace applications, employs micromachined silicon piezoresistive strain gages fused with high temperature glass to a high performance stainless steel substrate. Microfused™ technology eliminates age-sensitive organic epoxies used in traditional load cell designs providing excellent long term span and zero stability. Operating at exceedingly low strains, Microfused™ technology provides gage factors greater than 100, an essentially unlimited cycle life expectancy, superior resolution, exceedingly high over-range margins without the need for stops, and a ratiometric span of 3V. Microfused™ sensors are used in a variety of applications including bathroom scales, paint sprayers and safety-critical automotive brake sensors. Unlike competitive designs, which use a pressure capsule embedded within a silicone gel-filled cavity, the FS20 measures direct force. The FS20 is therefore not subject to lead-die fatigue failure common with competitive designs. The FS20 is the OEM designer’s dream-come-true; cost-optimized to bring your OEM products to life whether you need thousands or millions of load cells annually. Although the standard model is ideal for a wide range of applications, our dedicated design team at our Load Cell Engineering Center is ready to provide you with custom designs for your OEM applications. The FS20 is fully thermally compensated for changes in zero and span with respect to temperature and offers normalized zero and span for interchangeability. Consult Measurement Specialties for uncompensated super low cost variants of the FS20.
Features:
Low cost
Compression forces from 750 to 1500 grams force
High level output
Interchangeable
Industry standard packaging
Small size
Low noise
Robust: high overrange capability
High reliability
Low deflection
Essentially unlimited cycle life expectancy
Low off center errors
Fast response time
Reverse polarity protected
典型應用: 機器人，變力控制，負載測量，泵，接觸感應，稱重，家用電器
產品描述: FS20系列力傳感器具有高性能，低成本的特點。源于航天航空業的特殊要求，MEAS利用獨有的微熔技術通過高溫熔解玻璃將微機械壓阻應變片與高性能不銹鋼基板粘合。微熔技術徹底擺脫了傳統稱重傳感器所使用的限制產品壽命的有機環氧樹脂，從而具有極好的零點和長期穩定性。在形變非常小的情況下，微熔技術利用應變因子大于100的應變片，產品不存在壽命限制，分辨率高，抗過載能力強，最大輸出為3V。微熔力傳感器廣泛的應用于人體秤，噴涂設備，汽車剎車控制等。FS20不像其他的力傳感器一樣將力敏感元件用硅膠封裝在空腔中，而是直接測量力。因而FS20不受力敏感元件疲勞失效的影響。FS20是OEM客戶的理想選擇。盡管標準產品已經可以滿足諸多應用，我們的設計團隊仍樂于根據您的OEM應用定制產品。FS20經過溫度補償，互換性好。聯系我們了解未經補償?shù)某统杀綟S20力傳感器。
特點:
低成本
壓力范圍：750 到 1500 g
放大輸出
互換性好
工業標準封裝
小型封裝
低噪聲
耐用：高過載能力
高可靠性
偏移小
無壽命限制
偏心誤差小
響應迅速
反向極性保護
FS20系列力傳感器更多技術參數及規格書下載請瀏覽：http://www.h1476.cn/sensors/9.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
